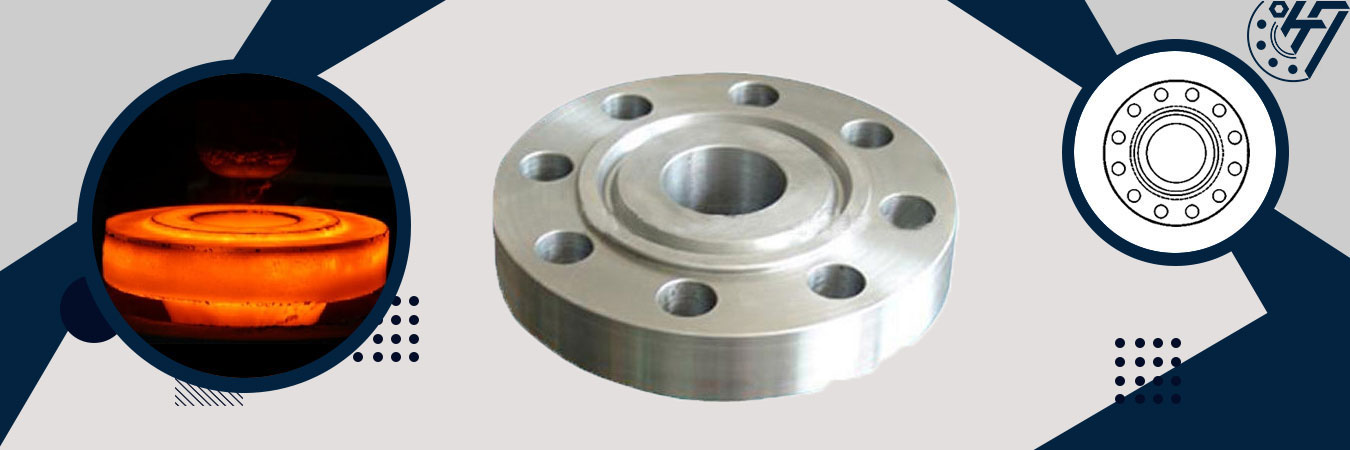

UNS N08904, 1.4539, SUS 904L , ASTM A182 F904L RTJ Flanges

UNS N08904, 1.4539, AISI 904L , ASTM A182 F904L Ring Type Joint Flange

UNS N08904, 1.4539, AISI 904L, ASTM A182 F904L RTJ Flange

UNS N08904, 1.4539, SUS 904L, ASTM A182 F904L Ring Joint Flange
Hex Forge Inc primarily manufactures the SS 904L RTJ Flange. We manufacture these flanges at Hex forge INC in mixed materials and grades. We employ the best machines and procedures to produce the perfect or error-free product. Our expert and qualified professionals manufacture these Flanges in different sizes and specifications. Our manufacturing team uses the most recent procedures and technologies to produce large quantities of high-quality SS 904L RTJ Flange. We strictly adhere to international and national specifications and norms at all times. As a result, this flange can tolerate high temperatures and has a long service life.
The 904L Stainless Steel RTJ Flange combines molybdenum and copper with iron for significantly increased resistance to corrosive acids such as sulphuric acid. It is resistant to chlorides in the ground in terms of minimal pitting and crevice corrosion, as well as stress corrosion cracking. Stainless steel 904L RTJ Flanges have a nickel content of 25%. When utilized in applications where temperatures can reach beyond 400°C, however, the structural stability of the ss 904l RTJ Flange is compromised. Power generation, heat exchangers, boilers, chemical, petrochemical, oil and gas, and petroleum industry applications all employ the SS 904L RTJ Flange.
We also guarantee prompt delivery of our stainless steel 904L RTJ Flange. Radiography test reports, third-party test reports, package lists, heat treatment charts, QAP, MTC, and other documentation are available to our clients.
Specification : ASTM A182 / ASME SA182
Standard : ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS SP44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Size : 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
Connect Type/ Flange Face Type : Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Small Male-Female (SMF)
JIS : JIS B2220, JIS B2221, 5K, 10K, 16K, 20K, 30K, 40K, 63K
DIN : DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638, DIN 2673
BS : BS 4504, BS 4504, BS 1560, BS 10


| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5 | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
WE MANUFACTURE ASTM A182 STAINLESS STEEL 904L RTJ FLANGE AS PER INTERNATIONAL STANDARDS & SPECIFICATIONS. 904L SS RTJ FLANGES MANUFACTURERS IN INDIA, CUSTOM SIZES SS 904L RING TYPE JOINT FLANGE CAN BE PRODUCED AS PER CLIENT DRAWING
| ASME B16.5 RTJ Flange Pressure Ratings | |||||||
|---|---|---|---|---|---|---|---|
| Temperature (°C) | Class | ||||||
| Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 | |
| -29 – 38 | 19.8 | 51.7 | 68.9 | 103.4 | 155 | 259 | 431 |
| 50 | 19.5 | 51.7 | 68.9 | 103.4 | 155 | 259 | 431 |
| 100 | 17.7 | 51.5 | 68.7 | 103.0 | 155 | 258 | 429 |
| 150 | 15.8 | 50.2 | 66.8 | 100.3 | 151 | 251 | 418 |
| 200 | 13.8 | 48.6 | 64.8 | 97.2 | 146 | 243 | 405 |
| 250 | 12.1 | 46.3 | 61.7 | 92.7 | 139 | 232 | 386 |
| 300 | 10.2 | 42.9 | 57.0 | 85.7 | 129 | 214 | 357 |
| 325 | 9.3 | 41.4 | 55.0 | 82.6 | 124 | 207 | 344 |
| 350 | 8.4 | 40.0 | 53.4 | 80.0 | 120 | 200 | 334 |
| 375 | 7.4 | 37.8 | 50.4 | 75.7 | 114 | 189 | 315 |
| 400 | 6.5 | 34.7 | 46.3 | 69.4 | 104 | 174 | 290 |
| 425 | 5.5 | 28.8 | 38.4 | 57.5 | 86.3 | 144 | 240 |
| 450 | 4.6 | 23.0 | 30.7 | 46.0 | 69.0 | 115 | 192 |
| 475 | 3.7 | 17.1 | 22.8 | 34.2 | 51.3 | 85.4 | 142 |
| 500 | 2.8 | 11.6 | 15.4 | 23.2 | 34.7 | 57.9 | 96.5 |
| 538 | 1.4 | 5.9 | 7.9 | 11.8 | 17.7 | 29.5 | 49.2 |
| DN In inches | Dimension | ASME B16.5 Dimensional Sizes 1/2 inches to 2 1/2 inches | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 125 LBS 150 LBS | 300 LBS | 400 LBS | 600 LBS | 900 LBS | 1500 LBS | 2500 LBS | ||||||||||
| inches | millimeter | inches | millimeter | inches | millimeter | inches | millimeter | inches | millimeter | inches | millimeter | inches | millimeter | |||
| 1/2 | A | 3 1/2 | 88.9 | 3 3/4 | 95.2 | 3 3/4 | 95.2 | 3 3/4 | 95.2 | 4 3/4 | 121 | 4 3/4 | 121 | 5 1/4 | 133.4 | |
| b | 7/16 | 11.1 | 9/16 | 14.3 | 9/16 | 14.3 | 9/16 | 14.3 | 7/8 | 22.2 | 7/8 | 22.2 | 1 3/16 | 30.2 | ||
| D2 | 1 3/8 | 34.9 | 1 3/8 | 34.9 | 1 3/8 | 34.9 | 1 3/8 | 34.9 | 1 3/8 | 34.9 | 1 3/8 | 34.9 | 1 3/8 | 34.9 | ||
| D1 | 2 3/8 | 60.3 | 2 5/8 | 66.7 | 2 5/8 | 66.7 | 2 5/8 | 66.7 | 3 1/4 | 82.6 | 3 1/4 | 82.6 | 3 1/2 | 88.9 | ||
| n | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | – | 4 | 44 | ||
| d | 5/8 | 15.9 | 5/8 | 15.9 | 5/8 | 15.9 | 5/8 | 15.9 | 7/8 | 22.2 | 7/8 | 22.2 | 7/8 | 22.2 | ||
| 3/4 | A | 3 7/8 | 98.4 | 4 5/8 | 117.5 | 4 5/8 | 117.5 | 4 5/8 | 117.5 | 5 1/8 | 130 | 5 1/8 | 130 | 5 1/2 | 139.7 | |
| b | 1/2 | 12.7 | 5/8 | 15.9 | 5/8 | 15.9 | 5/8 | 15.9 | 1 | 25.4 | 1 | 25.4 | 1 1/4 | 31.8 | ||
| D2 | 1 11/16 | 42.9 | 1 11/16 | 42.9 | 1 11/16 | 42.9 | 1 11/16 | 42.9 | 1 11/16 | 42.9 | 1 11/16 | 42.9 | 1 11/16 | 42.9 | ||
| D1 | 2 3/4 | 69.8 | 3 1/4 | 82.5 | 3 1/4 | 82.5 | 3 1/4 | 82.5 | 3 1/2 | 88.9 | 3 1/2 | 88.9 | 3 3/4 | 95.2 | ||
| n | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | – | 4 | 44 | ||
| d | 5/8 | 15.9 | 3/4 | 19 | 3/4 | 19 | 3/4 | 19 | 7/8 | 22.2 | 7/8 | 22.2 | 7/8 | 22.2 | ||
| 1 | A | 4 1/4 | 108 | 4 7/8 | 123.8 | 4 7/8 | 123.8 | 4 7/8 | 123.8 | 5 7/8 | 149.2 | 5 7/8 | 149.2 | 6 1/4 | 159 | |
| b | 9/16 | 14.3 | 11/16 | 17.5 | 11/16 | 17.5 | 11/16 | 17.5 | 1 1/8 | 28.6 | 1 1/8 | 28.6 | 1 3/8 | 34.9 | ||
| D2 | 2 | 50.8 | 2 | 50.8 | 2 | 50.8 | 2 | 50.8 | 2 | 50.8 | 2 | 50.8 | 2 | 50.8 | ||
| D1 | 3 1/8 | 79.4 | 3 1/2 | 88.9 | 3 1/2 | 88.9 | 3 1/2 | 88.9 | 4 | 102 | 4 | 102 | 4 1/4 | 108 | ||
| n | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||
| d | 5/8 | 15.9 | 3/4 | 19 | 3/4 | 19 | 3/4 | 19 | 1 | 25.4 | 1 | 25.4 | 1 | 25.4 | ||
| 1 1/4 | A | 4 5/8 | 117.5 | 5 1/4 | 133.4 | 5 1/4 | 133.4 | 5 1/4 | 133.4 | 6 1/4 | 159 | 6 1/4 | 159 | 7 1/4 | 184.2 | |
| b | 5/8 | 15.9 | 3/4 | 19 | 13/16 | 20.6 | 13/16 | 20.6 | 1 1/8 | 28.6 | 1 1/8 | 28.6 | 1 1/2 | 38.1 | ||
| D2 | 2 1/2 | 63.5 | 2 1/2 | 63.5 | 2 1/2 | 63.5 | 2 1/2 | 63.5 | 2 1/2 | 63.5 | 2 1/2 | 63.5 | 2 1/2 | 63.5 | ||
| D1 | 3 1/2 | 88.9 | 3 7/8 | 98.4 | 3 7/8 | 98.4 | 3 7/8 | 98.4 | 4 3/8 | 111 | 4 3/8 | 111 | 5 1/8 | 130 | ||
| n | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||
| d | 5/8 | 15.9 | 3/4 | 19 | 3/4 | 19 | 3/4 | 19 | 1 | 25.4 | 1 | 25.4 | 1 1/8 | 28.6 | ||
| 1 1/2 | A | 5 | 127 | 6 1/8 | 155.6 | 6 1/8 | 155.6 | 6 1/8 | 155.6 | 7 | 177.8 | 7 | 177.8 | 8 | 203 | |
| b | 11/16 | 17.5 | 13/16 | 20.6 | 7/8 | 22.2 | 7/8 | 22.2 | 1 1/4 | 31.8 | 1 1/4 | 31.8 | 1 3/4 | 44.5 | ||
| D2 | 2 7/8 | 73 98 | 2 7/8 | 73 | 2 7/8 | 73 | 2 7/8 | 73 | 2 7/8 | 73 | 2 7/8 | 73 | 2 7/8 | 73 | ||
| D1 | 3 7/8 | 4 | 4 1/2 | 114 | 4 1/2 | 114 | 4 1/2 | 114 | 4 7/8 | 124 | 4 7/8 | 124 | 5 3/4 | 146 | ||
| n | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||
| d | 5/8 | . 15.9 | 7/8 | 22.2 | 7/8 | 22.2 | 7/8 | 22.2 | 1 1/8 | 28.6 | 1 1/8 | 28.6 | 1 1/4 | 31.8 | ||
| 2 | A | 6 | 152.4 | 6 1/2 | 165.1 | 6 1/2 | 165.1 | 6 1/2 | 165.1 | 8 1/2 | 215.9 | 8 1/2 | 215.9 | 9 1/4 | 234.9 | |
| b | 3/4 | 19 | 7/8 | 22.2 | 1 | 25.4 | 1 | 25.4 | 1 1/2 | 38.1 | 1 1/2 | 38.1 | 2 | 50.8 | ||
| D2 | 3 5/8 | 92.1 | 3 5/8 | 92.1 | 3 5/8 | 92.1 | 3 5/8 | 92.1 | 3 5/8 | 92.1 | 3 5/8 | 92.1 | 3 5/8 | 92.1 | ||
| D1 | 4 3/4 | 121 | 5 | 127 | 5 | 127 | 5 | 127 | 6 1/2 | 165.1 | 6 1/2 | 165.1 | 6 3/4 | 171 | ||
| n | 4 | 4 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | ||
| d | 3/4 | 19 | 3/4 | 19 | 3/4 | 19 | 3/4 | 19 | 1 | 25.4 | 1 | 25.4 | 1 1/8 | 28.6 | ||
| 2 1/2 | A | 7 | 177.8 | 7 1/2 | 190.5 | 7 1/2 | 190.5 | 7 1/2 | 190.5 | 9 5/8 | 244 | 9 5/8 | 244 | 10 1/2 | 266.7 | |
| b | 7/8 | 22.2 | 1 | 25.4 | 1 1/8 | 28.6 | 1 1/8 | 28.6 | 1 5/8 | 41.3 | 1 5/8 | 41.3 | 2 1/4 | 57.2 | ||
| D2 | 4 1/8 | 104.8 | 4 1/8 | 104.8 | 4 1/8 | 104.8 | 4 1/8 | 104.8 | 4 1/8 | 105 | 4 1/8 | 105 | 4 1/8 | 105 | ||
| D1 | 5 1/2 | 139.7 | 5 7/8 | 149.2 | 5 7/8 | 149.2 | 5 7/8 | 149.2 | 7 1/2 | 190.5 | 7 1/2 | 190.5 | 7 3/4 | 197 | ||
| n | 4 | 4 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | ||
| d | 3/4 | 19 | 7/8 | 22.2 | 7/8 | 22.2 | 7/8 | 22.2 | 1 1/8 | 28.6 | 1 1/8 | 28.6 | 1 1/4 | 31.8 | ||
| Nominal Pipe Size | Groove Dimensions | Diameter of Raised Portion K | |||||||||||||||
| 150 PSI | 300 PSI | 400 PSI | 600 PSI | 900 PSI | 1500 PSI | 2500 PSI | Groove # | Pitch Dia | Depth | Width | Radius at Bottom | 150 PSI | 300 400 600 PSI | 900 PSI | 1500 PSI | 2500 PSI | Depth |
| P | E | F | R | E | |||||||||||||
| 6 | R46 | 8-5/16 | 3/8 | 17/32 | 1/16 | 9-3/4 | 3/8 | ||||||||||
| 6 | 47 | 9 | 1/2 | 25/32 | 1/16 | 11 | 1/2 | ||||||||||
| 8 | 48 | 9-3/4 | 1/4 | 11/32 | 1/32 | 10-3/4 | 1/4 | ||||||||||
| 8 | 8 | 8 | 8 | 49 | 10-5/8 | 5/16 | 15/32 | 1/32 | 11-7/8 | 12-1/8 | 5/16 | ||||||
| ……. | 8 | 50 | 10-5/8 | 7/16 | 21/32 | 1/16 | 12-1/2 | 7/16 | |||||||||
| 8 | 51 | 11 | 9/16 | 29/32 | 1/16 | 13-3/8 | 9/16 | ||||||||||
| 10 | 52 | 12 | 1/4 | 11/32 | 1/32 | 13 | 1/4 | ||||||||||
| 10 | 10 | 10 | 10 | 53 | 12-3/4 | 5/16 | 15/32 | 1/32 | 14 | 14-1/4 | 5/16 | ||||||
| 10 | 54 | 12-3/4 | 7/16 | 21/32 | 1/16 | 14-5/8 | 7/16 | ||||||||||
| 10 | 55 | 13-1/2 | 11/16 | 1-3/16 | 3/32 | 16-3/4 | 11/16 | ||||||||||
| 12 | 56 | 15 | 1/4 | 11/32 | 1/32 | 16 | 1/4 | ||||||||||
| 12 | 12 | 12 | 12 | 57 | 15 | 5/16 | 15/32 | 1/32 | 16-1/4 | 16-1/2 | 5/16 | ||||||
| 12 | 58 | 15 | 9/16 | 29/32 | 1/16 | 17-1/4 | 9/16 | ||||||||||
| 14 | 59 | 15-5/8 | 1/4 | 11/32 | 1/32 | 16-3/4 | 1/4 | ||||||||||
| 12 | 60 | 16 | 11/16 | 1-5/16 | 3/32 | 19-1/2 | 11/16 | ||||||||||
| 14 | 14 | 14 | 61 | 16-1/2 | 5/16 | 15/32 | 1/32 | 18 | 5/16 | ||||||||
| 14 | 62 | 16-1/2 | 7/16 | 21/32 | 1/16 | 18-3/8 | 7/16 | ||||||||||
| 14 | 63 | 16-1/2 | 5/8 | 1-1/16 | 3/32 | 19-1/4 | 5/8 | ||||||||||
| 16 | 64 | 17-7/8 | 1/4 | 11/32 | 1/32 | 19 | 1/4 | ||||||||||
| 16 | 16 | 16 | 65 | 18-1/2 | 5/16 | 15/32 | 1/32 | 20 | 5/16 | ||||||||
| 16 | 66 | 18-1/2 | 7/16 | 21/32 | 1/16 | 20-5/8 | 7/16 | ||||||||||
| 16 | 67 | 18-1/2 | 11/16 | 1-3/16 | 3/32 | 21-1/2 | 11/16 | ||||||||||
| 18 | 68 | 20-3/8 | 1/4 | 11/32 | 1/32 | 21-1/2 | 1/4 | ||||||||||
| 18 | 18 | 18 | 69 | 21 | 5/16 | 15/32 | 1/32 | 22-5/8 | 5/16 | ||||||||
| 18 | 70 | 21 | 1/2 | 25/32 | 1/16 | 23-3/8 | 1/2 | ||||||||||
| 18 | 71 | 21 | 11/16 | 1-3/16 | 3/32 | 24-1/8 | 11/16 | ||||||||||
| 20 | 20 | 72 | 22 | 1/4 | 11/33 | 1/32 | 23-1/2 | 1/4 | |||||||||
| 20 | 20 | 73 | 23 | 3/8 | 17/32 | 1/16 | 25 | 3/8 | |||||||||
| 20 | 74 | 23 | 1/2 | 25/32 | 1/16 | 25-1/2 | 1/2 | ||||||||||
| 20 | 75 | 23 | 11/16 | 1-5/16 | 3/32 | – | 26-1/2 | 11/16 | |||||||||
| 24 | 76 | 26-1/2 | 1/4 | 11/32 | 1/32 | 28 | 1/4 | ||||||||||
| 24 | 24 | 24 | 77 | 27-1/4 | 7/16 | 21/32 | 1/16 | 29-1/2 | 7/16 | ||||||||
| 24 | 78 | 27-1/4 | 5/8 | 1-1/16 | 3/32 | 30-3/8 | 5/8 | ||||||||||
| 24 | 79 | 27-1/4 | 13/16 | 17/16 | 3/32 | 31-1/4 | 13/16 | ||||||||||
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | 1.00 – 2.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
We are One Of The Most Trusted Supplier Of 904L Stainless Steel RTJ Flange in India. For final ASTM A182 SS 904L RTJ Flange Price List
